New and Rebuilt Hydraulic Bar Shears

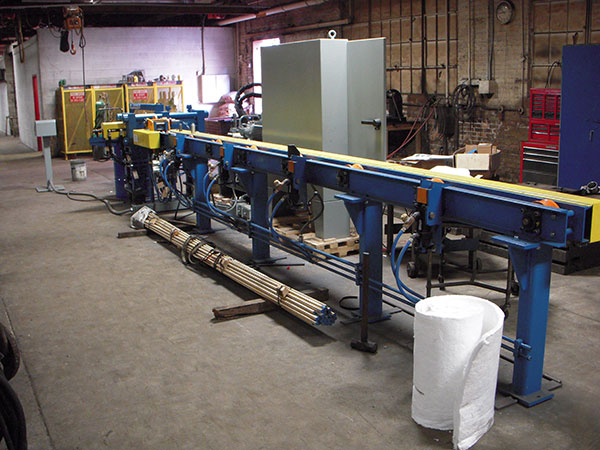

140 Ton Horizontal Slugger Bar Shear
Shearing occurs on the horizontal plane so the bar is supported and cut with greater accuracy.

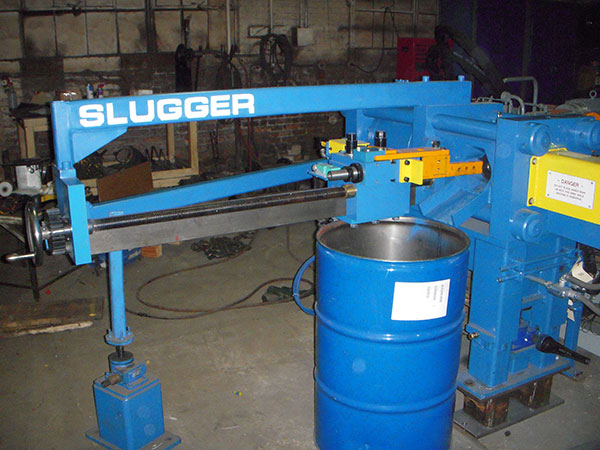

The Slugger Length Adjustment Mechanism (SLAM) quietly starts and stops the bar at the exact length without the shock of a length gauge.

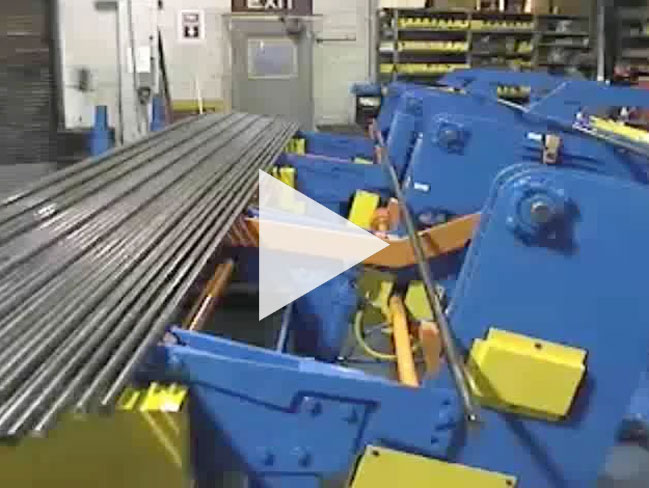

Slugger Unscrambler Reject

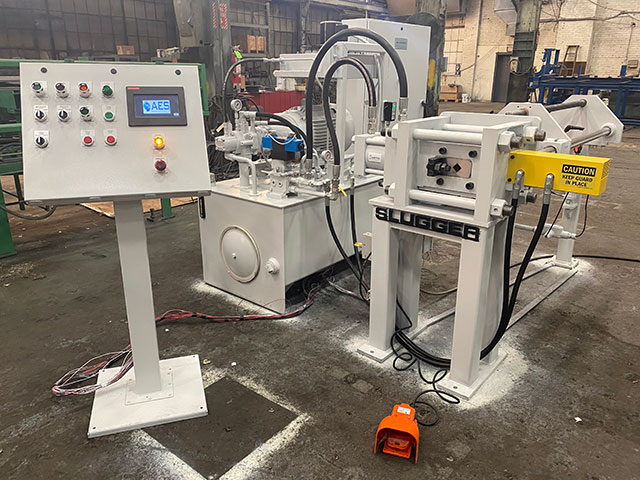

40 Ton Slugger Shear

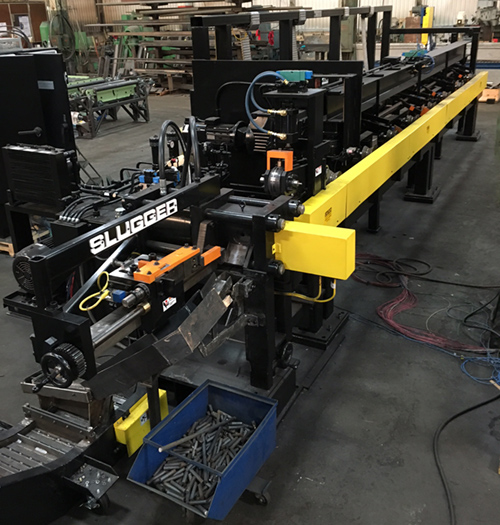

Slugger Horizontal Bar Shear with Unscrambler
SLUGGER® Bar & Billet Shears
Slugger hydraulic bar shears are available as new units with capacities from 40 to 1600 tons, and also as remanufactured models with new and rebuilt components. Slugger shears are engineered with a powerful horizontal shearing action that enables better accuracy, higher productivity, and faster blade changeovers than many other industrial bar shears.
SLUGGER® Advantages Include:
-
Quiet, Accurate Bar Positioning
The Slugger uses standard length gauges or an optional Slugger Length Adjustment Mechanism (SLAM), which includes dual encoder equipped pinch rollers and a closed loop microprocessor to supply signals that quietly position the bar for accurate length cuts. Crop elimination is automatic and there is infinite length capacity. -
Fast Changeovers
Top loading shear blades and push plates are independent of the hydraulic piston so they can be changed quickly and easily with a single operator. -
Versatile Infeed and Outfeed Systems
Slugger hydraulic bar shears are fully compatible with manual, semi-automatic and fully automatic bar handling and index systems. -
Superior Capability for Long Billets/Parts
The Slugger is an excellent fit for long billets and part lengths (over 18") due to its horizontal action whereby a bar can be supported and discharged more easily during the shearing process.
SLUGGER® Shears are Available in the Following Models:
| MODEL TONS | BAR SIZE** | STROKES PER MINUTE*** |
| 40 | 1-1/4" dia., 1" RCS | 50 |
| 75 | 1-3/4" dia., 1-1/2" RCS | 50 |
| 140 | 2-3/8" dia., 2" RCS | 30 |
| 300 | 3-3/8" dia., 3" RCS | 25 |
| *550 280 low |
4-1/2" dia., 4" RCS 3" dia., 2-5/8" RCS |
20 30 |
| *850 440 low |
5-1/4" dia., 4-3/4" RCS 3-1/4" dia., 3-1/8" RCS |
15 20 |
| *1200 620 low |
6-3/4" dia., 5-7/8" RCS 4-3/4" dia., 4-1/4" RCS |
12 18 |
| *1600 840 low |
7-3/4" dia., 6-7/8" RCS 5-1/2" dia., 4-7/8" RCS |
10 15 |
| Custom | Quoted per application | |
* Models with Tandem Hydraulic Cylinders: Oil pumped to one chamber for low tonnage range, or pumped into both chambers for high tonnage.
** Based on shear strength of 60,000 to 70,000 PSI.
*** Including feed time. 40 ton to 550 ton 12" lengths. 850 ton to 1600 ton slug lengths.
